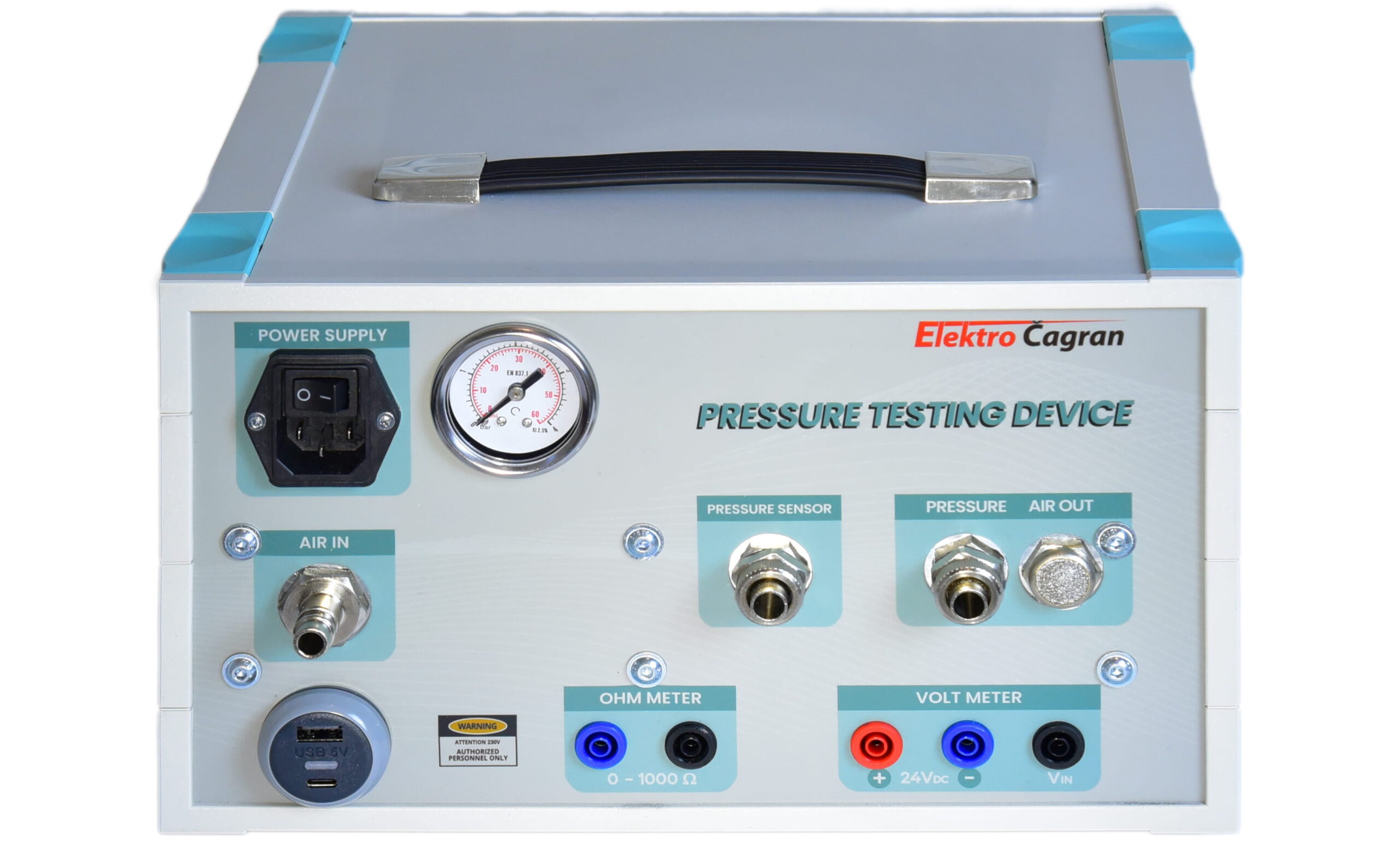

Testing device

5.150,00 € (excl. tax)

Description

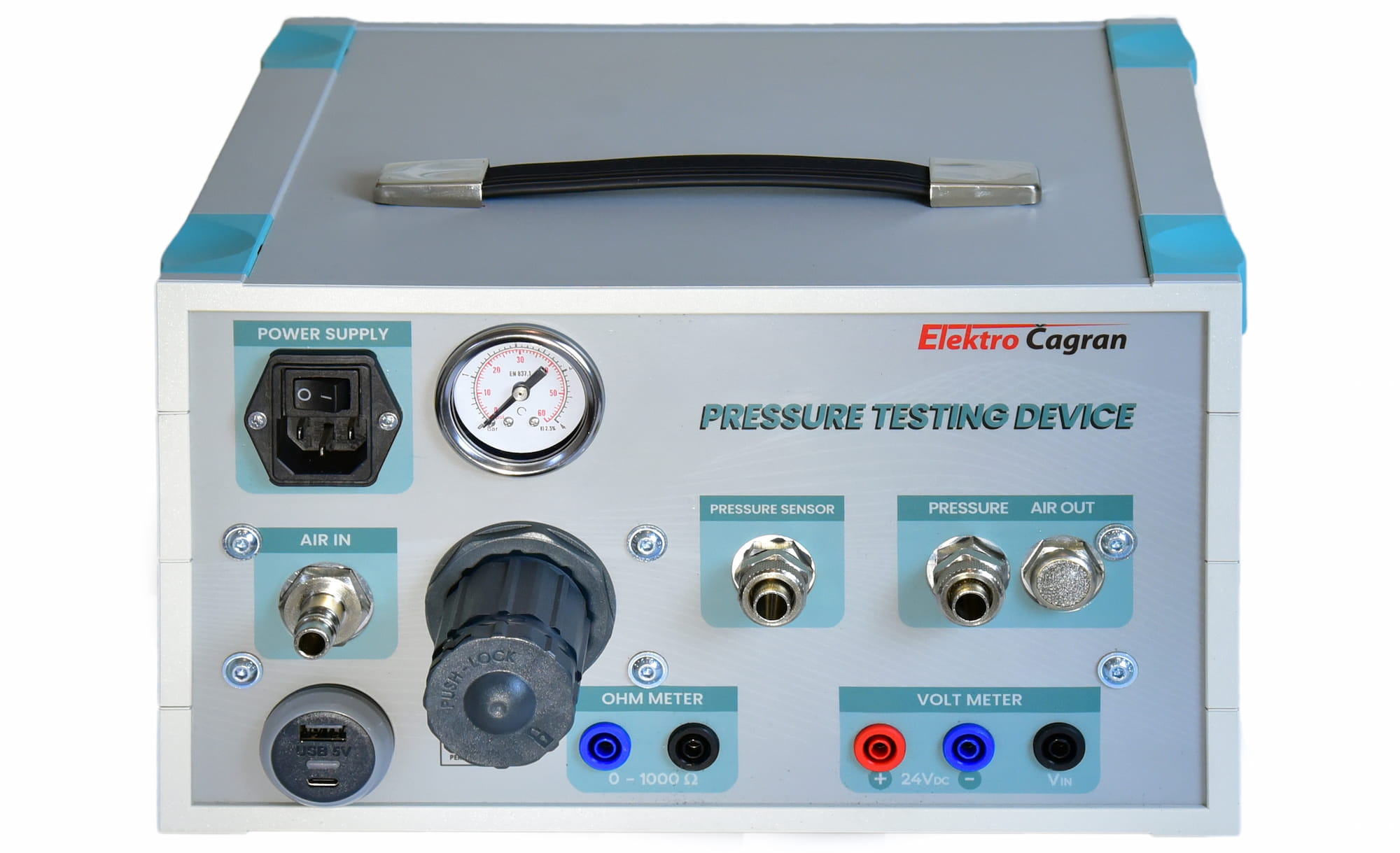

The device is equipped with a pressure regulator for the gas medium (0–4 bar), which can be installed so that the adjustment of the maximum input pressure is either accessible or locked. It also has two solenoid valves: one that supplies air to the test sample and another that releases the gas from it. A proportional valve controls how much the sample is filled or emptied, and a relative pressure sensor is used for monitoring.
The test sample is connected with two hoses—one for filling and emptying the vessel, and the other for measuring the pressure inside.
The user interacts with the device through a tablet that runs a dedicated control application. The device also includes a built-in ohmmeter and voltmeter for working with sensors that provide resistance or voltage signals. The application offers many functions and is designed to meet the needs of a wide range of users.

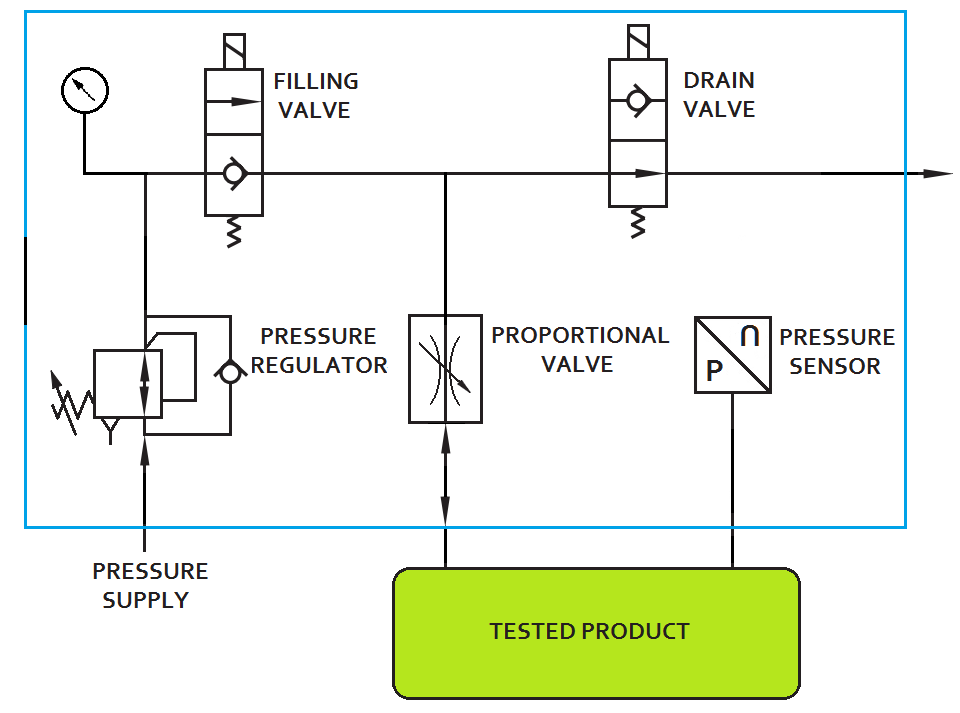

Schematic diagram of the device

Additional information

Device dimensions

W: 307 mm
H: 180 mm
D: 257 mm
Weight

6 kg
User interface

Tablet SAMSUNG
Languages

Slovenian, English, German, Dutch
Language can be added if desired.
Measurement method

Relative pressure
A/D conversion resolution

10 bit
Medium

Compressed air and non-aggressive gases
Max. inlet pressure

12 bar
Device working range

0 – 4 Bar
Connection voltage

230 VAC – 50Hz
Other connection voltages or external transformer available upon request.
Operating temperature

5 – 50°C

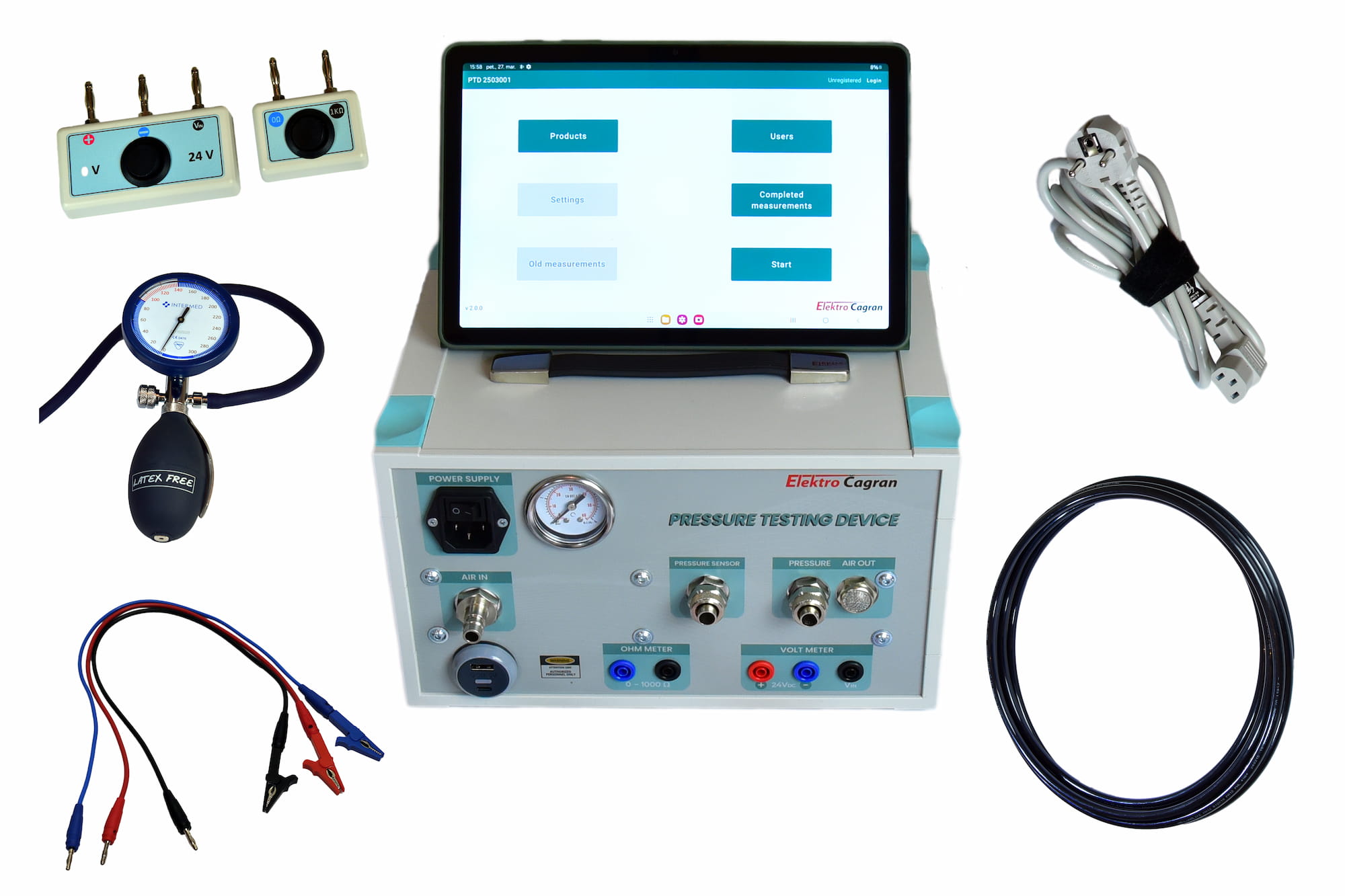

Kit contents

– Measuring device with power supply cable
– Tablet with charging cable
– 12/10 tube or on request
– Connection leads for measuring resistance and voltage
– Calibrators for pressure, resistance and voltage.
Accessories

– Transformer (Pri.: as desired, Sec.: 230VAC)
– Pressure reducing valve
– Compact case

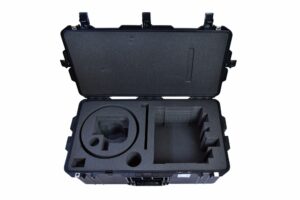

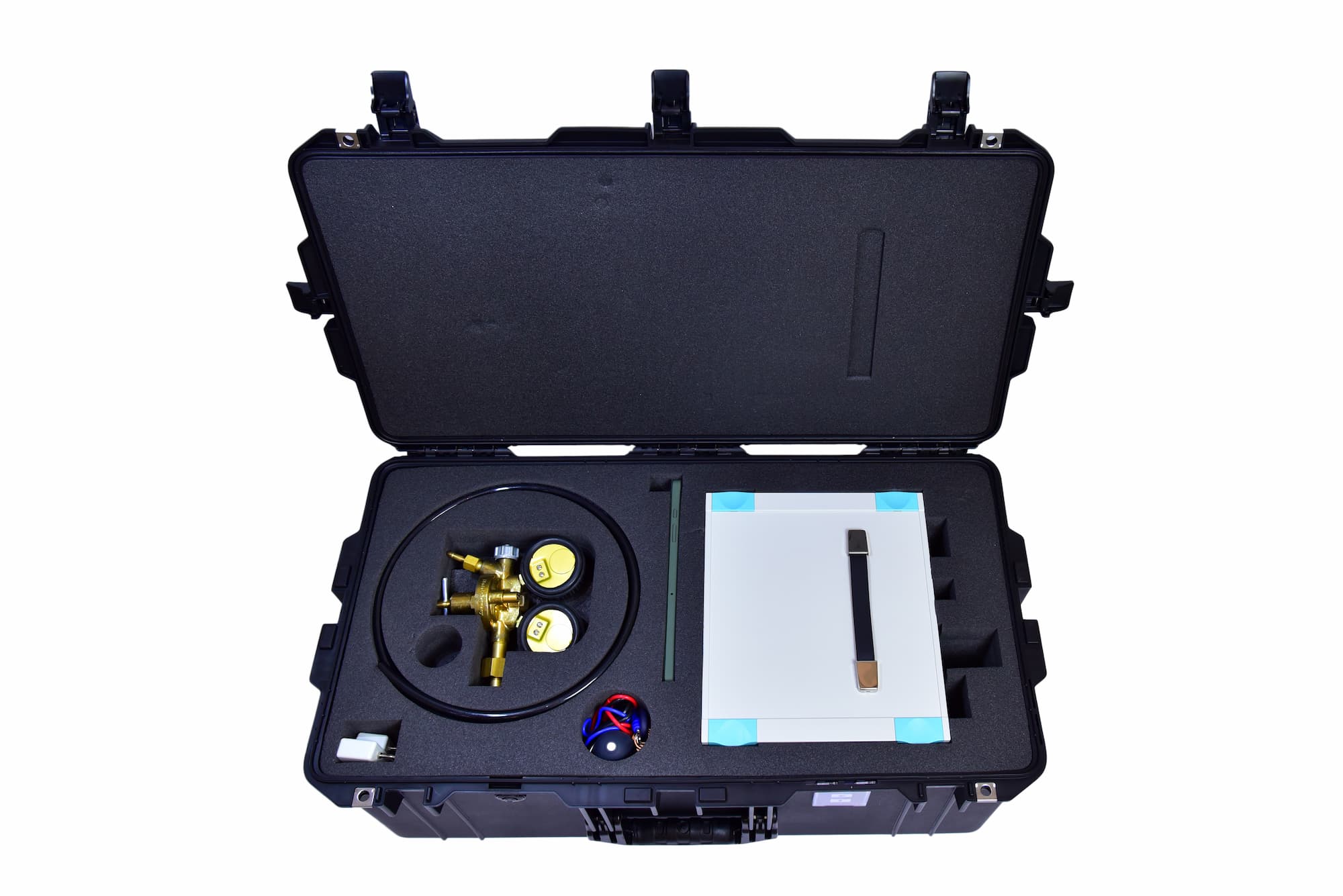

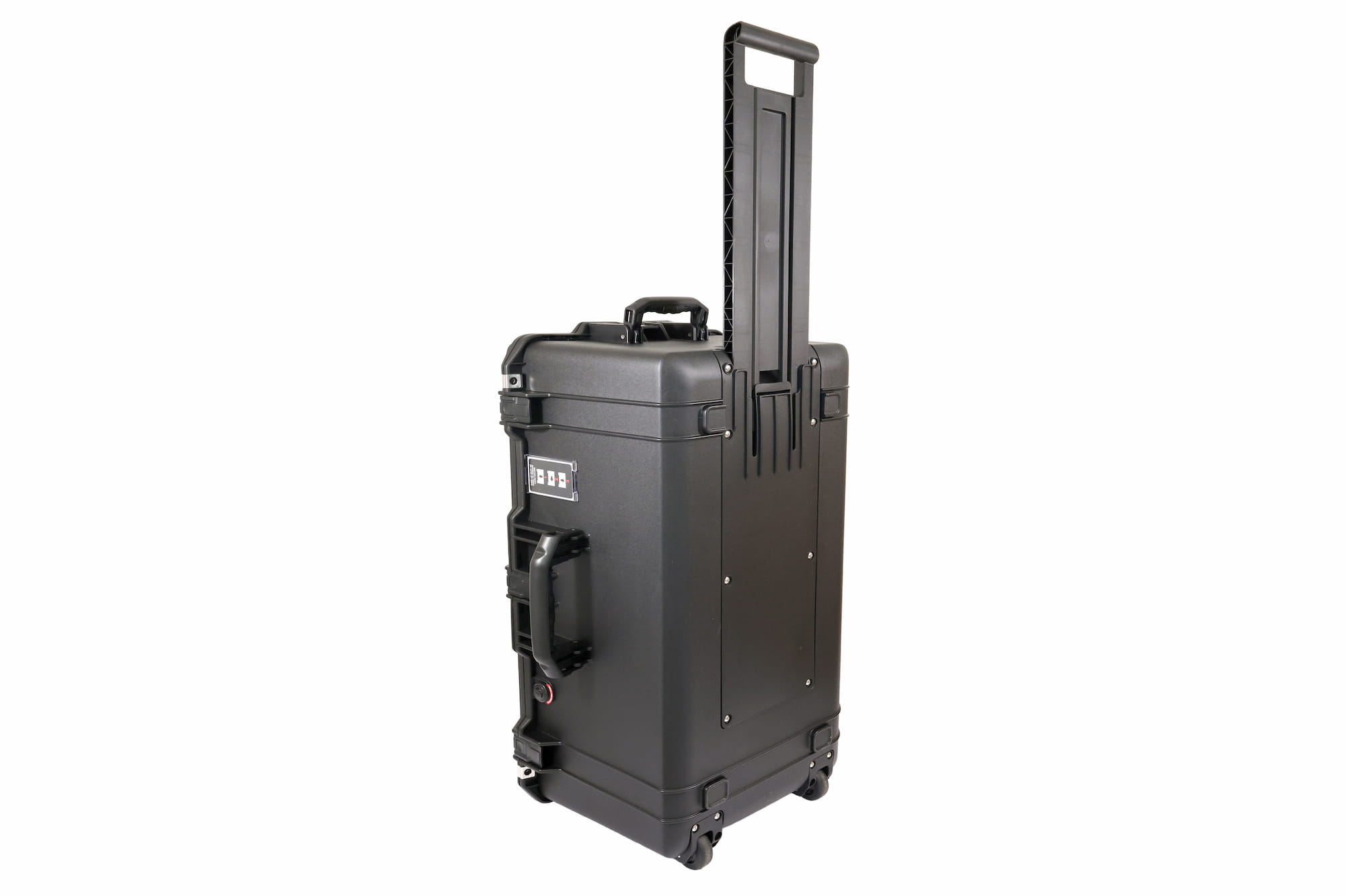

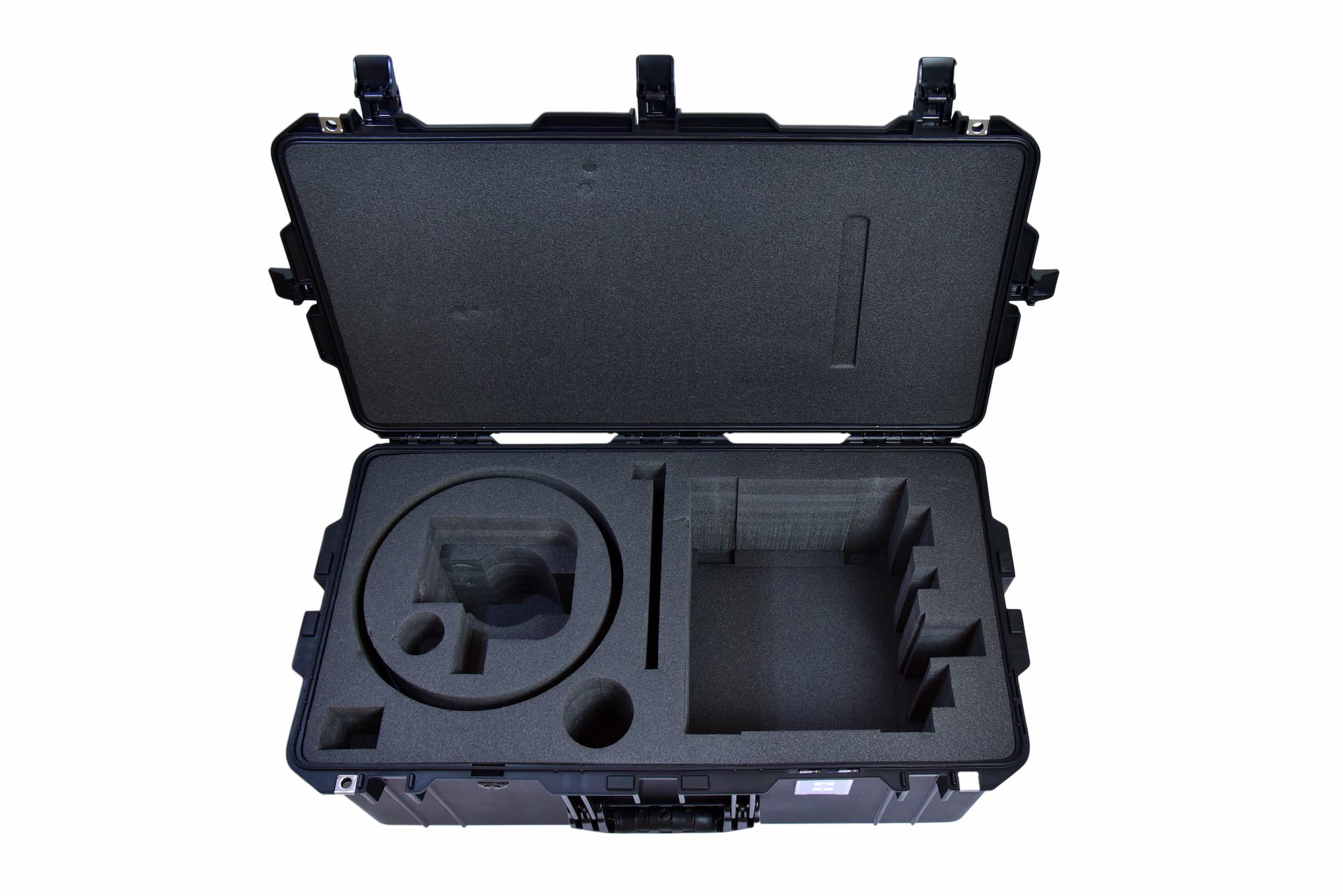

Portable case

Portable case

Waterproof, resistant to deformation and dust. Quiet rolling wheels with stainless steel bearings. Foldable handle. Automatic pressure-equalizing valve. Protective stainless steel lock. Custom foam made for storing the testing device and additional accessories.

Dimension W: 433 mm H: 790 mm D: 339 mm
Weight 8.2 Kg

596,00 € (excl. tax)Select options

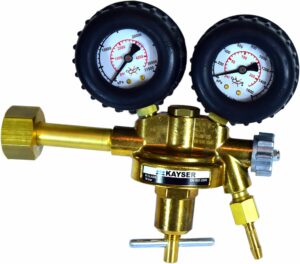

Pressure Reducing Valve

Pressure Reducing Valve

Since the maximum connection pressure to the measuring device is 10 bar, in the case of using a gas cylinder, we must use a pressure reducing valve.

87,00 € (excl. tax)Select options

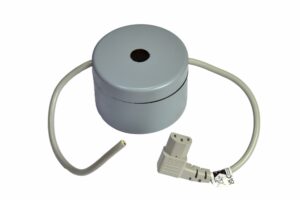

Electrical Transformer

Electrical Transformer

Since the device uses a connection voltage of 230 VAC, in the case of a different connection voltage, we must use an electrical transformer that converts your connection voltage to the voltage used by the device.

118,00 € (excl. tax)Select options
